MGN-CGS Midget Glassware Set

MGN-CGS Midget Glassware Set

Midget glassware and accessories (Method 6).

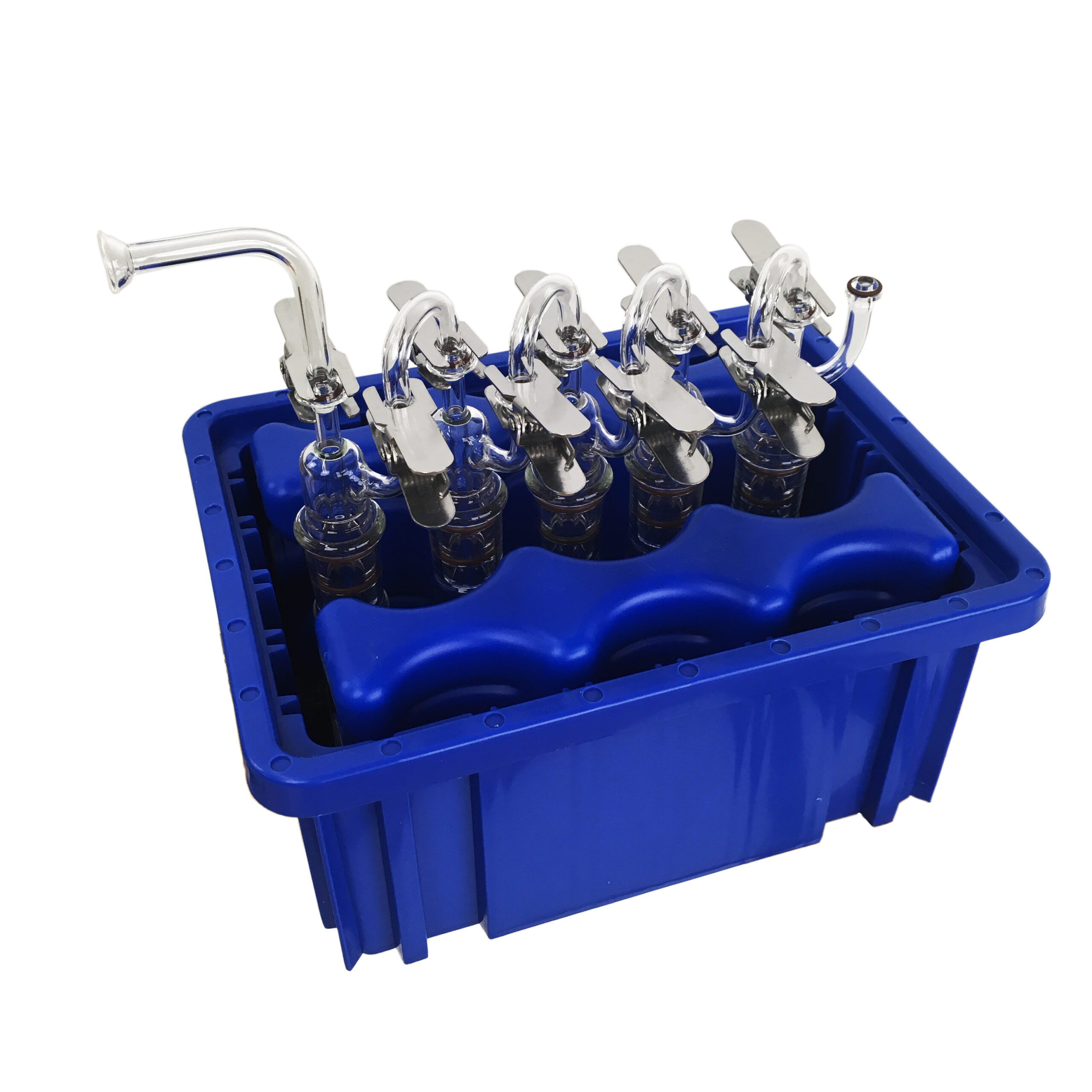

Midget glass impingers feature unground double O-ring 24/40 taper joint and 12/5 O-ring ball joints. The bottle capacity is 40 mL. The insulated sample tray with drain valve (MSB-1) can hold a midget glassware set (MGN-CGS) and two non-toxic ice packs (ICE-16). The ice packs allow quick turn around. At the end of the run simply remove the ice packs and drain the water before purging. Set includes impingers (plain and orifice), U-tubes, connectors, and clamps.

SKU: MGN-CGS Category:

Description

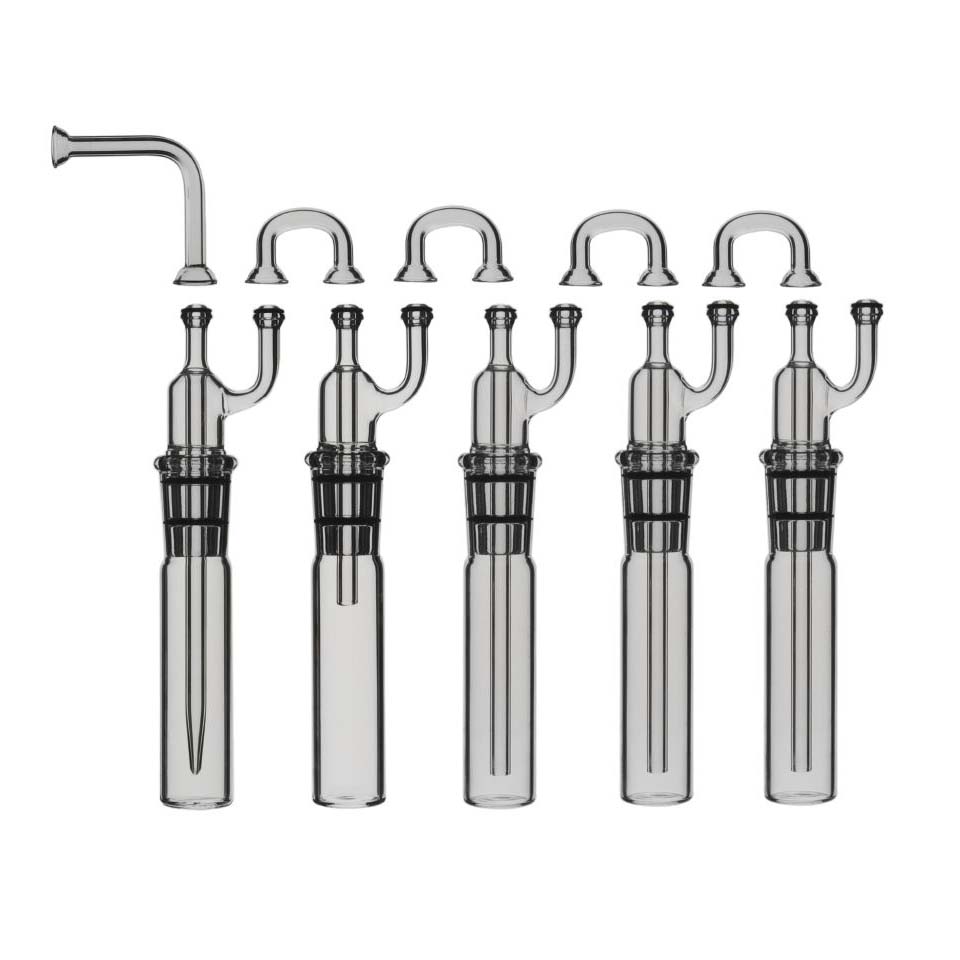

Midget glassware set includes:

  • 4 midget impingers (MGN-1A, 1 MGN-1AO)
  • 12/5 joints, 3 U-tubes, (MGN-2)
  • 1 L-connectors, (MGN-6)
  • 10 #12 pinch clamps, (BS12)
  • MSB-2 drain tray with drain valve, foam, and ice packs

The Apex Instruments Method 6 and Method 26 sampling kits are normally used in conjunction with the XC-623 or XC-53 sampling console or alternative metering devices. The midget impingers can be used for many methods, including NIOSH and OSHA methods. The Method 6 sampling kit (SK-606) can be modified for U.S. EPA Method 26 with the addition of the SK-626 kit.
