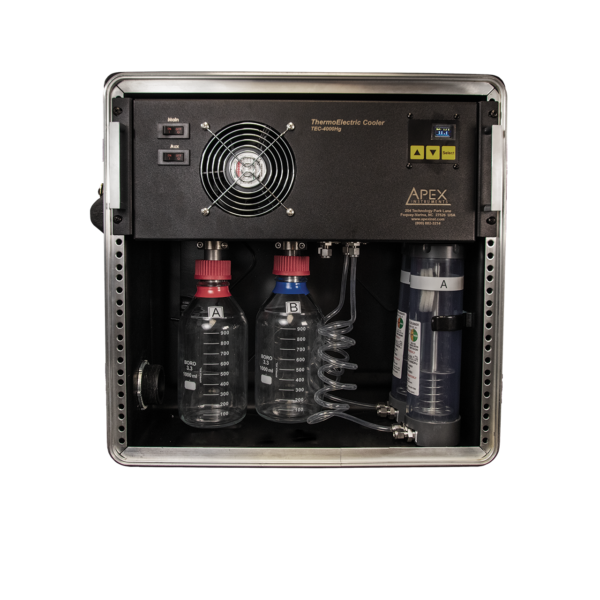

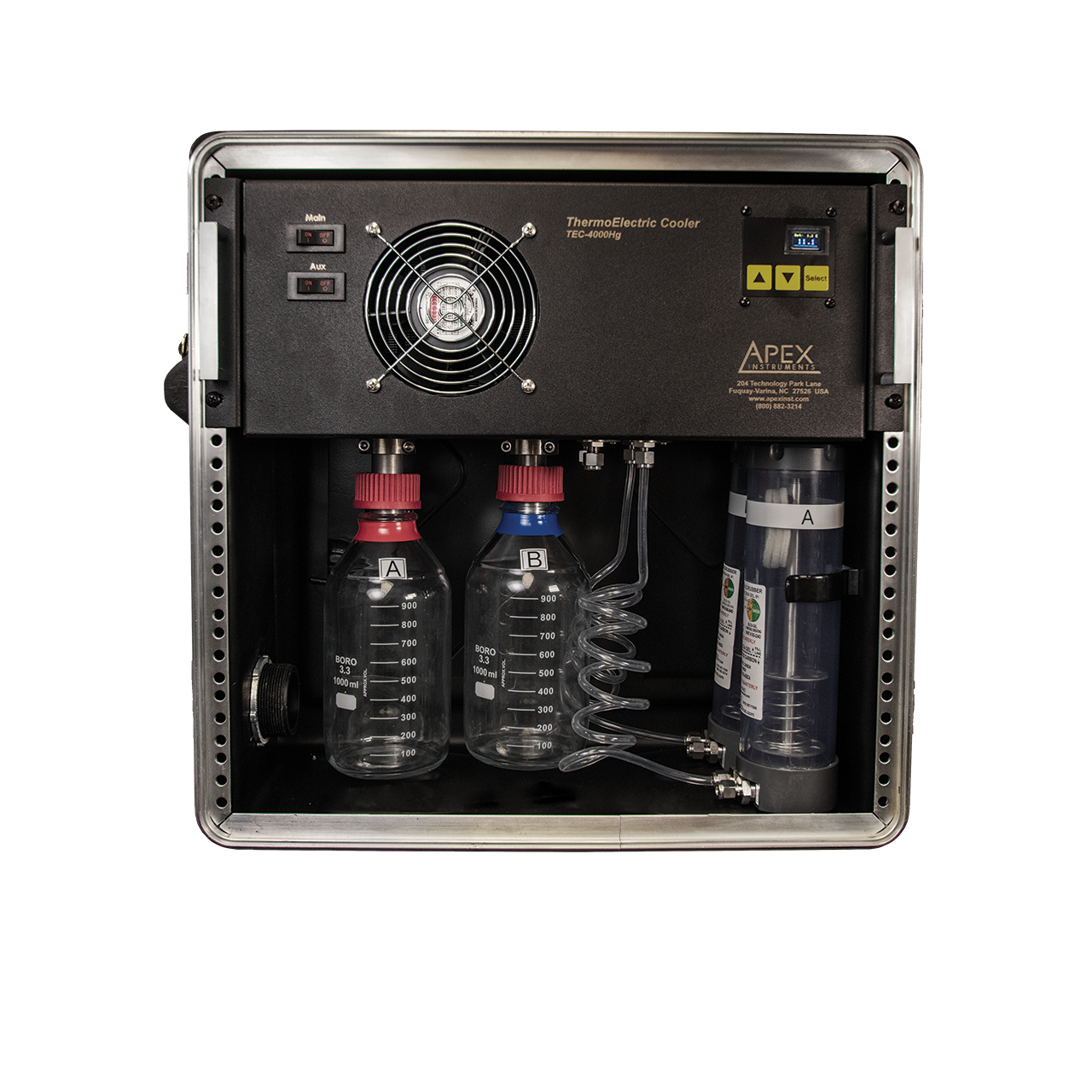

TEC-4000HgP

Description

Portable Mercury Gas Cooler for Method 30B

The sample gas is cooled for the purpose of condensing the water vapor and water-soluble acids prior to measurement with the metering console. The condensate is collected in plastic-coated reagent bottles connected to the bottom of the condensers. The condensate freely drains into the bottles without the need of a pump. Dry, acid-free sample gas is crucial for protecting the sample pumps and measurement devices.

The bottles are sized for collecting up to one week of condensate from a source with 20% moisture when sampling at 500 cubic centimeters per minute.

The condensate can be measured for determining the approximate percent water vapor in accordance with EPA Method 4.

Gases are drawn through a dry sorbet scrubber for removing residual water vapor and corrosive gases.

Specifications:

Refrigeration: Thermoelectric heat pump: 59-watt solid-state module

Temperature display: OLED display +/- 0.1 ºC/ºF

Temperature control: Variable direct current with PID control, 3-button keypad

Cooling capacity: 100 BTU/hr

Cold block: Insulated aluminum

Condenser: Reverse flow condensate separator, C276 alloy, 1”x7” dimensions, 4” active cooling zone

Condensate removal: Gravity bottle, 10 ml/min

Heat exchanger: Low-profile heatsink with six 6-mm diameter U-tube heat-pipes, coated fins for corrosion resistance, 120-mm axial fan, with encapsulated motor and electronics

Rated flow rate: 2 lpm at 30% moisture per channel

Ambient operating temperature: 32 to 104 ºF. (0 to 40 ºC)

Power: Supply 120V AC/60 Hz 15 amps max. or 240VAC 50 Hz 10 amps max., IEC C-13 inlet

Dimensions: 17”x7”x17” (43.2 cm x 27.8 cm x 43.2 cm)

Weight: 22 lbs. (10 kg)
