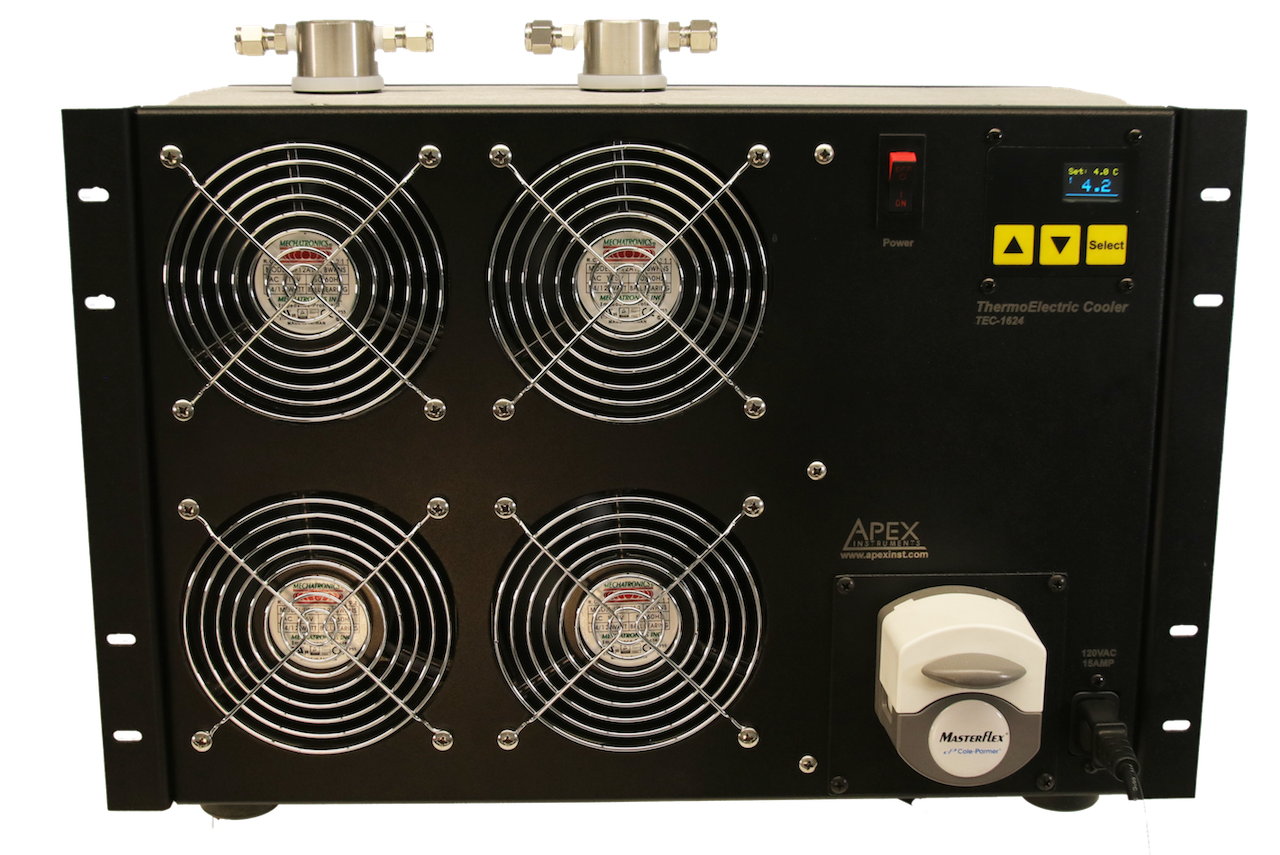

TEC-1624 Peltier Dual-Stage Gas Cooler

$6,526.00

The TEC-1624 Thermoelectric Dual-Stage Gas Cooler removes moisture from a gas sample and ensures that the sample is cooled to a constant dew point before reaching the analyzer. The TEC-1624 is designed to be a rack-mountable gas cooler. With its robust two stage single-channel gas conditioning system, the unit efficiently removes condensate and delivers dry gas to the analyzer. The first stage is air-cooled to reduce the dew point of the gas sample and the second stage is actively cooled with thermoelectric modules.

10 in stock

SKU: TEC-1624 Category:

Note: The images shown are for illustration purposes only and may not be an exact representation of the product.

Description

Features

  • Portable, compact and lightweight
  • Ideal for high moisture laden gas samples
  • Rugged solid-state thermoelectric modules
  • OLED display with power monitor
  • IP-rated switching power supply
  • Variable DC voltage PID controller for thermoelectric modules
  • Peristaltic pump for condensate removal
  • Standard rack mount

Specifications

  • Pinnacle Heat Pump System: Two 80-watt solid-state modules
  • Pre-Cooler: Forced air ambient
  • Temperature Display: OLED display +/- 0.1 °C/°F Temperature Control: Variable DC voltage controller, 3-button keypad
  • Cold Block: Insulated aluminum
  • Condenser: Two Alloy 316 stainless steel, reverse flow condensate separator, various coatings available, 1” OD x 12”
  • Condensate Removal: Integrated peristaltic pump, 10 ml/min
  • Radiator: Two sets of dual low-profile heat sinks, 120-mm axial fans, with encapsulated motor and electronics
  • Rated Moisture Extraction Capacity: 55% moisture at 10 lpm (75° ambient) with a less than 1% target moisture rate.
  • Ambient Operating Temperature: 32 to 104 °F (0 to 40 °C) Standard Flow Rate: 1 to 15 lpm, single channel Line Size: 1/4“ diameter standard or 3/8” fittings provided
  • Mounting Options: Rack mount
  • Accessories: Companion condenser, included peristaltic pump (optional), separate strain reliefs
  • Dimensions: 19” W x 12” H x 8.8” D (483mm W x 304mm H x 224mm D)
  • Weight: 39.7 lbs (18.0 kg)

Additional information

Weight 40 lbs
Dimensions 9 × 19 × 12 in
