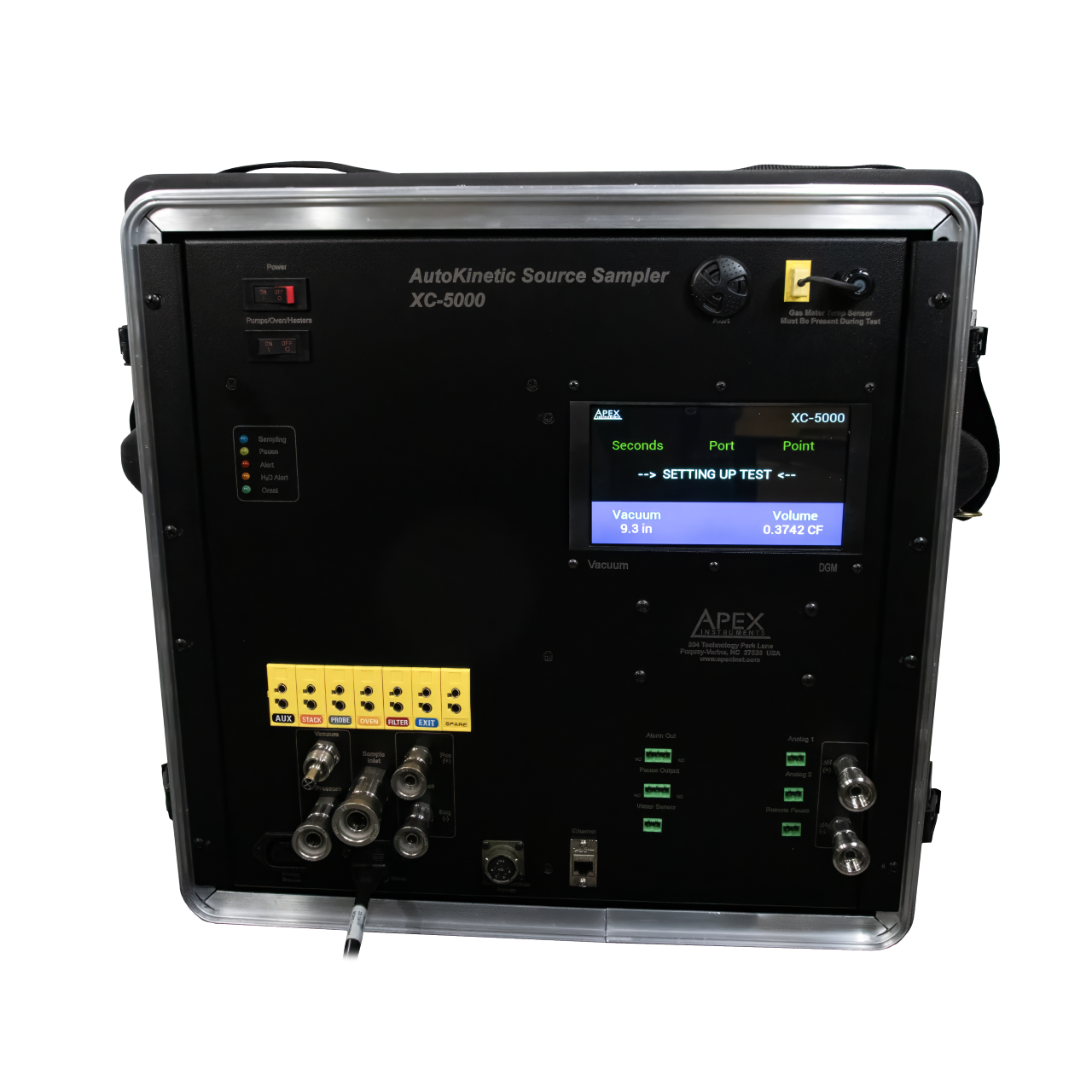

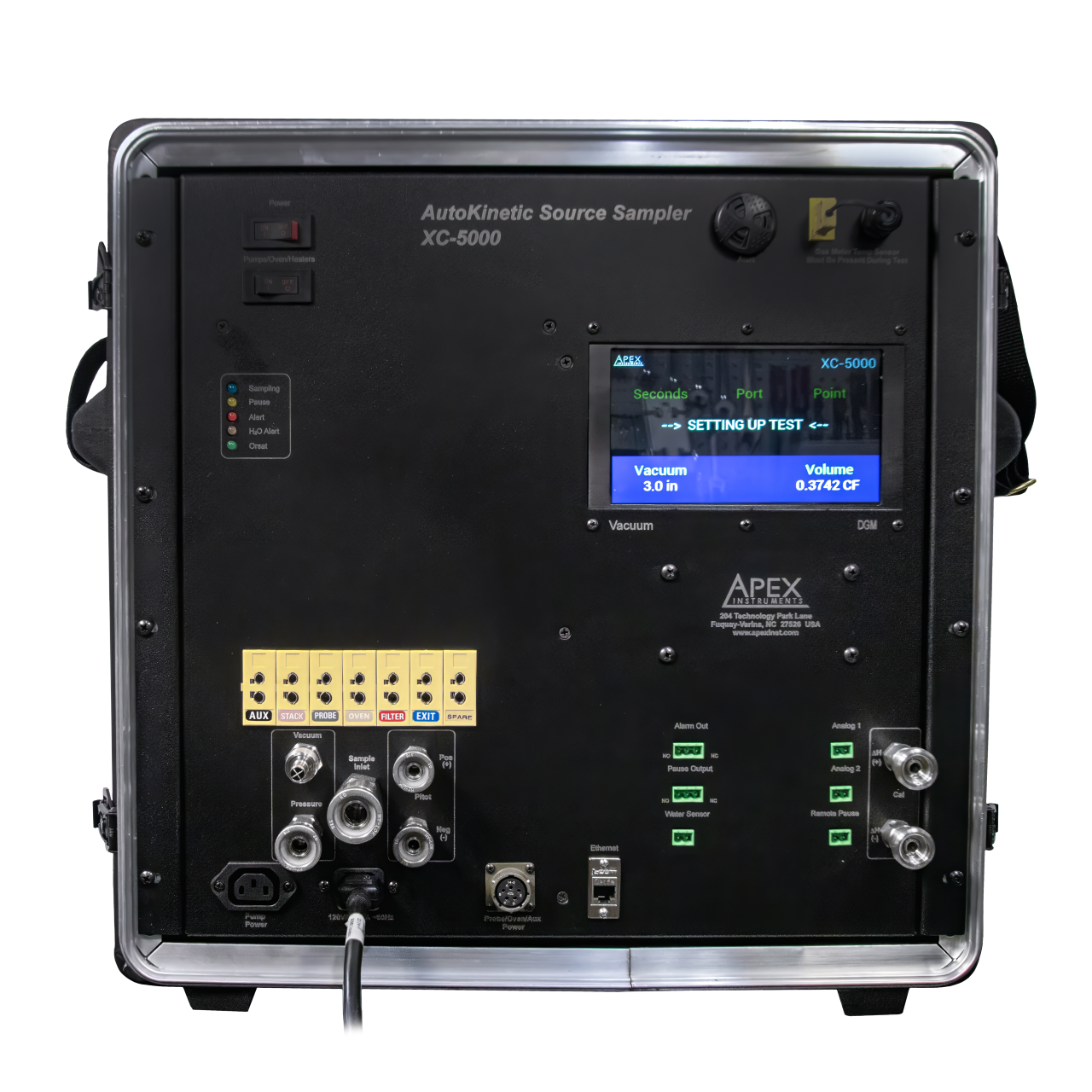

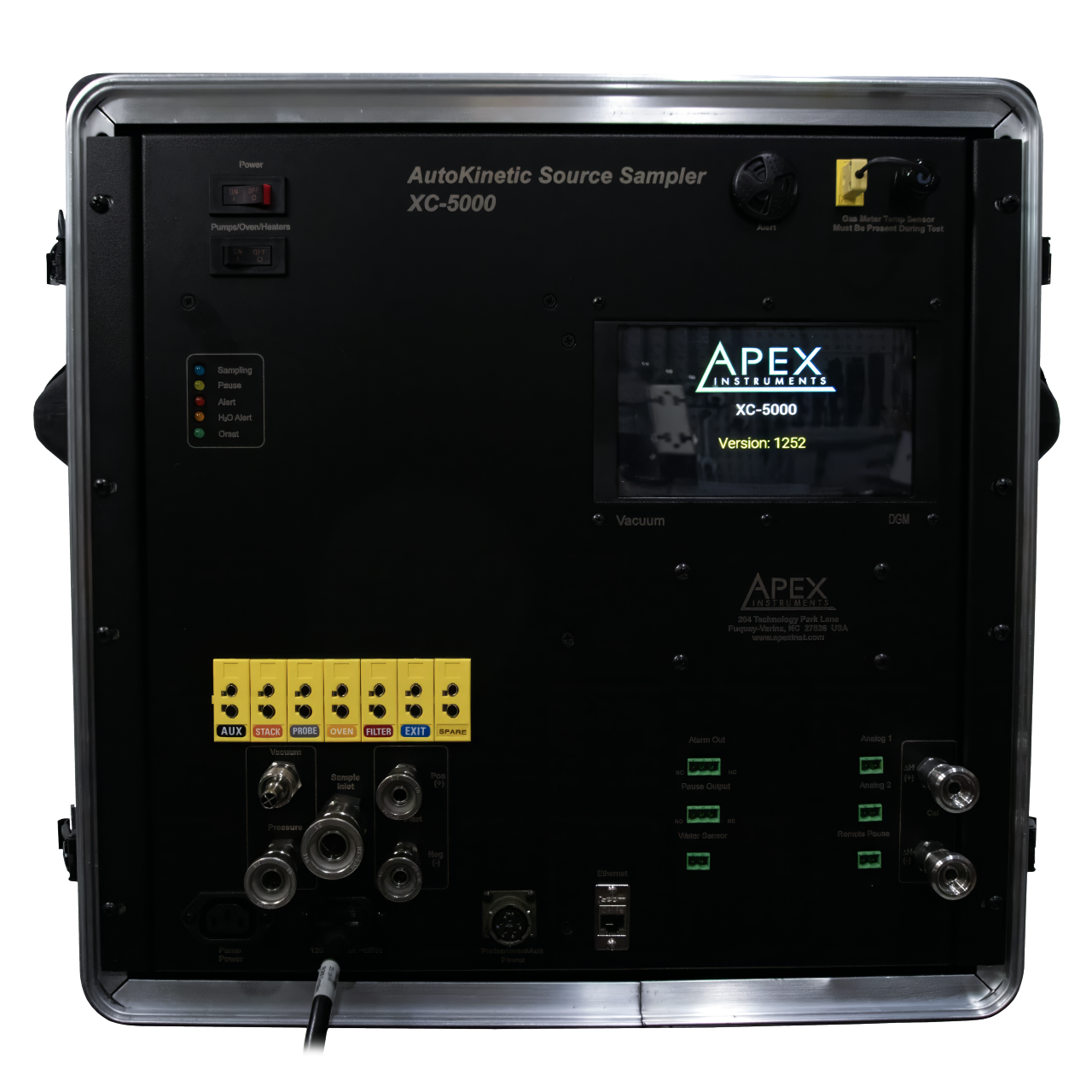

XC-5000 CONSOLE

Description

Features and benefits:

• Automated isokinetic sampling console improves data integrity
• Improves precision and provides quality measurements
• Rugged and lightweight roto-molded linear low-density polyethylene (LLDPE/LMDE) case with two molded-in ergonomic carrying handles
• Windows-based interface guides the operator through the sampling process
• Calculates traverse points, ideal nozzle diameter, and isokinetic rate
• Accepts standard modules for various EPA Methods
• Software assisted pre- and post-leak checks
• Optional automatic pause function
• Notifies you to move the probe
• Alarms for user attention
• Stores sampling profiles and data
• English or metric units
• Multilingual language editor
• Sunlight-readable LED display

Specifications:

• Dry Gas Meter: precision DGM, 0.7 liters per revolution, digital encoder, 2 cubic cm resolution

• Temperature Control: integrated temperature control via the control and data acquisition board, probe, and even with solid-state relays

• Thermocouple Display: seven temperatures displayed simultaneously on the PC user interface, °F or °C, probe, stack, oven, filter, exit, aux, and DGM

• Digital Pressure Transducers: for ΔH, and ΔP (bi-directional), barometric
  • Pitot ΔP
    • Range: +/-2.5 inches, +/- 63 mm
    • Resolution: 0.01 inch, 0.1 mm
  • Orifice ΔH
    • Range: 0 – 5 inches, 0 – 127 mm
    • Resolution: 0.01 inch, 0.1 mm
  • Barometric
    • Range: 17.7 – 32.5 inHg, 450 – 825 mmHg
    • Resolution: 0.01 inHg, 0.1 mmHg
  • Vacuum sensor
    • Range: 0-30 inHg, 0-101 kPa
    • 2% accuracy

• Umbilical Connections:
  • Electrical: 4-conductor circular connector, grounded shell
  • Sample line: stainless steel 1/2-inch quick connect
  • Pitot line: stainless steel 1/4-inch quick connects (optional 3/8”)
  • External pump: stainless steel 3/8-inch quick connect
  • Thermocouples: type-K standard size

• Communication: ethernet

• Dimensions: H23” x W21” x D12” (58 cm x 53 cm x 30.5 cm)

• Weight: 39 lbs (17.7 kg)

• Optional: 4-channel analog input module for logging external data (4-20ma, 0-10V, 1-5V)

• Power: 120 V at 60 Hz or 240 V at 50 Hz (optional)

• Console Power Requirements: 15 amp max
